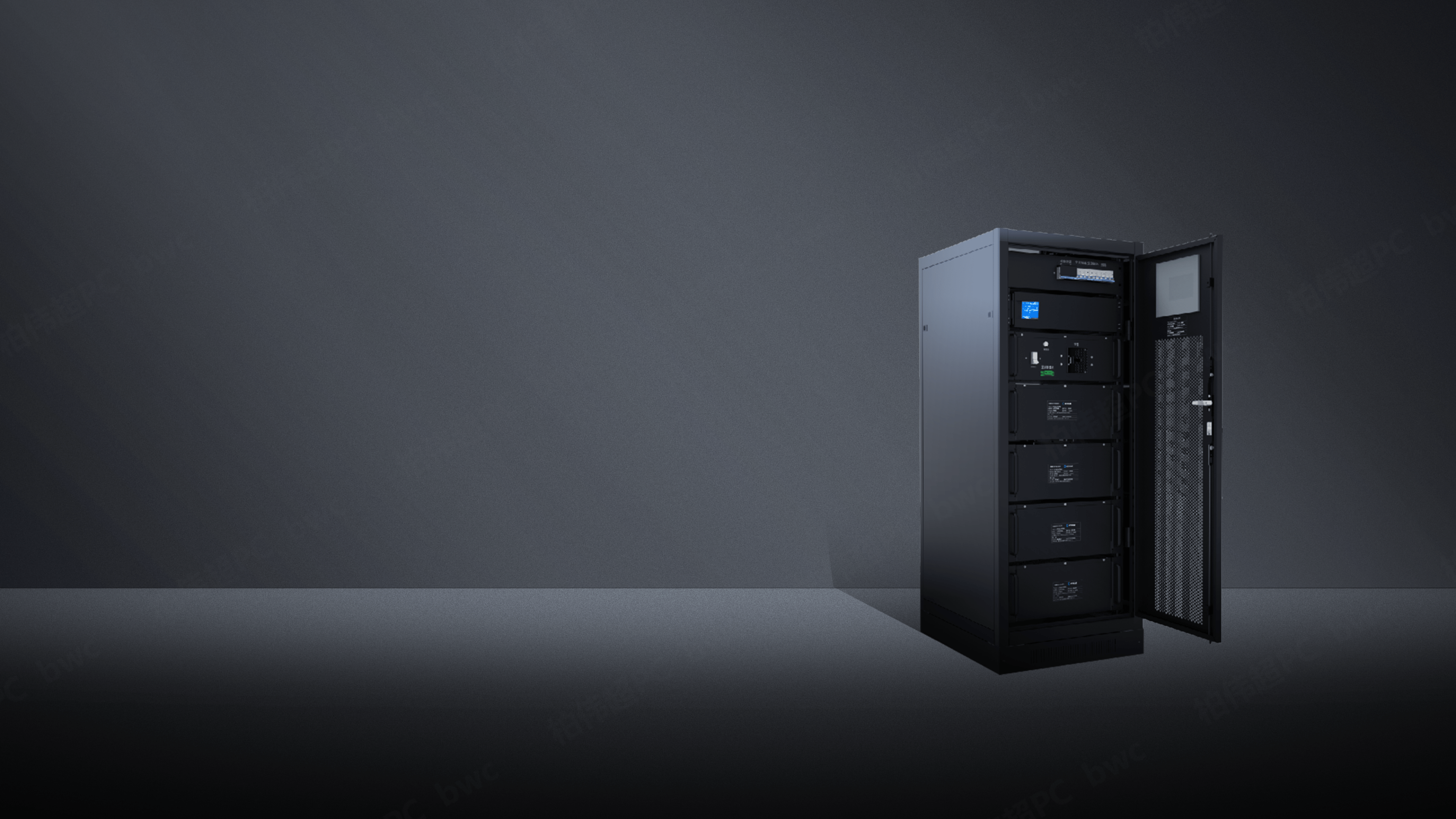

Uninterruptible Power Supply (UPS) BLi4096-50/BLi5120-50
It is a device that can provide continuous and stable power supply for
equipment. The UPS independently developed by Dingchen can be widely
applied in fields like computers, servers, data centers, medical
equipment and industrial automation.
Product Features
Technical Parameters
BLi4096-50
BLi5120-50
Cell
Battery type
LPF
Cell capacity
3.2V/50Ah
Cell cycle life
>8,000 times@1C/1C 70% SOH
Pack
Pack capacity
102.4V/50Ah
Dimensions(W*D*H)
402*665*210mm
Cooling method
Natural cooling, no fan
System
Nominal voltage
409.6V (optional ±204.8V)
Nominal energy
20.4kWh
Number of packs
4
Charge voltage(default setting)
435.2V
Discharge protection voltage(default setting)
371.2V
Weight
About 350kg
Dimensions(W*D*H)
600*800*1800mm
Rated charge–discharge rate
1P
Communications interface
RS485/4G
Inbound and outbound cable mode
Down in down out/ Up in up out
Opening
Front and rear doors, grid doors
UPS
10 – 40kVA (optional)
Power distribution switch
Input, Output, Bypass, Maintenance bypass, Battery
Operating temperature
0 – 40℃
Relative humidity
0%-95% (non – condensing)
Working altitude
≤4000m (> 1000m reduction)
Noise
<55dB
Cell
Battery type
LPF
Cell capacity
3.2V/50Ah
Cell cycle life
>8,000 times@1C/1C 70% SOH
Pack
Pack capacity
102.4V/50Ah
Dimensions(W*D*H)
402*665*210mm
Cooling method
Natural cooling, no fan
System
Nominal voltage
409.6V (optional ±204.8V)
Nominal energy
25.6kWh
Number of packs
5
Charge voltage(default setting)
544V
Discharge protection voltage(default setting)
464V
Weight
About 400kg
Dimensions(W*D*H)
600*800*2000mm
Rated charge–discharge rate
1P
Communications interface
RS485/4G
Inbound and outbound cable mode
Down in down out/ Up in up out
Opening
Front and rear doors, grid doors
UPS
10 – 40kVA (optional)
Power distribution switch
Input, Output, Bypass, Maintenance bypass, Battery
Operating temperature
0 – 40℃
Relative humidity
0%-95% (non – condensing)
Working altitude
≤4000m (> 1000m reduction)
Noise
<55dB
