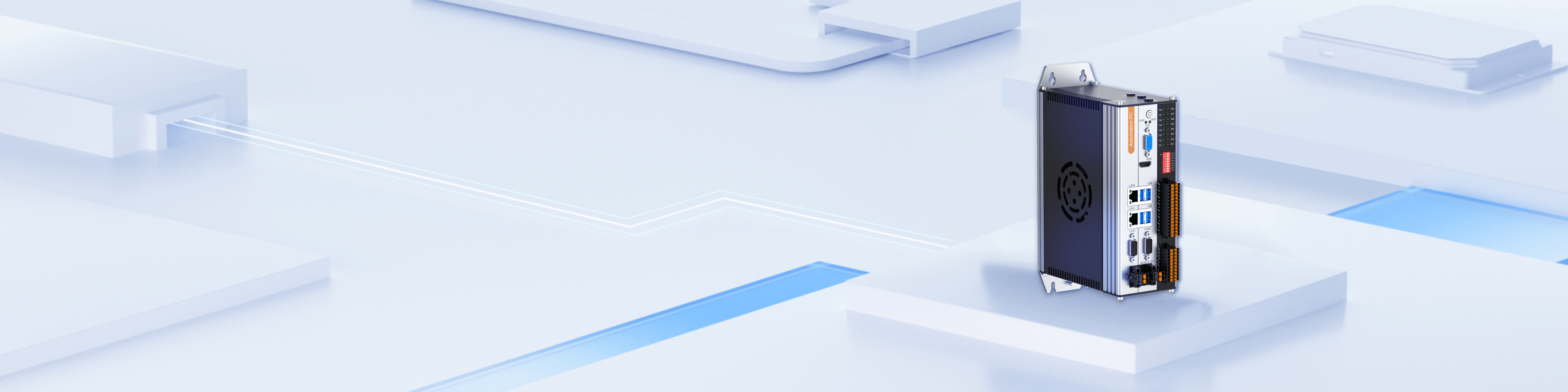

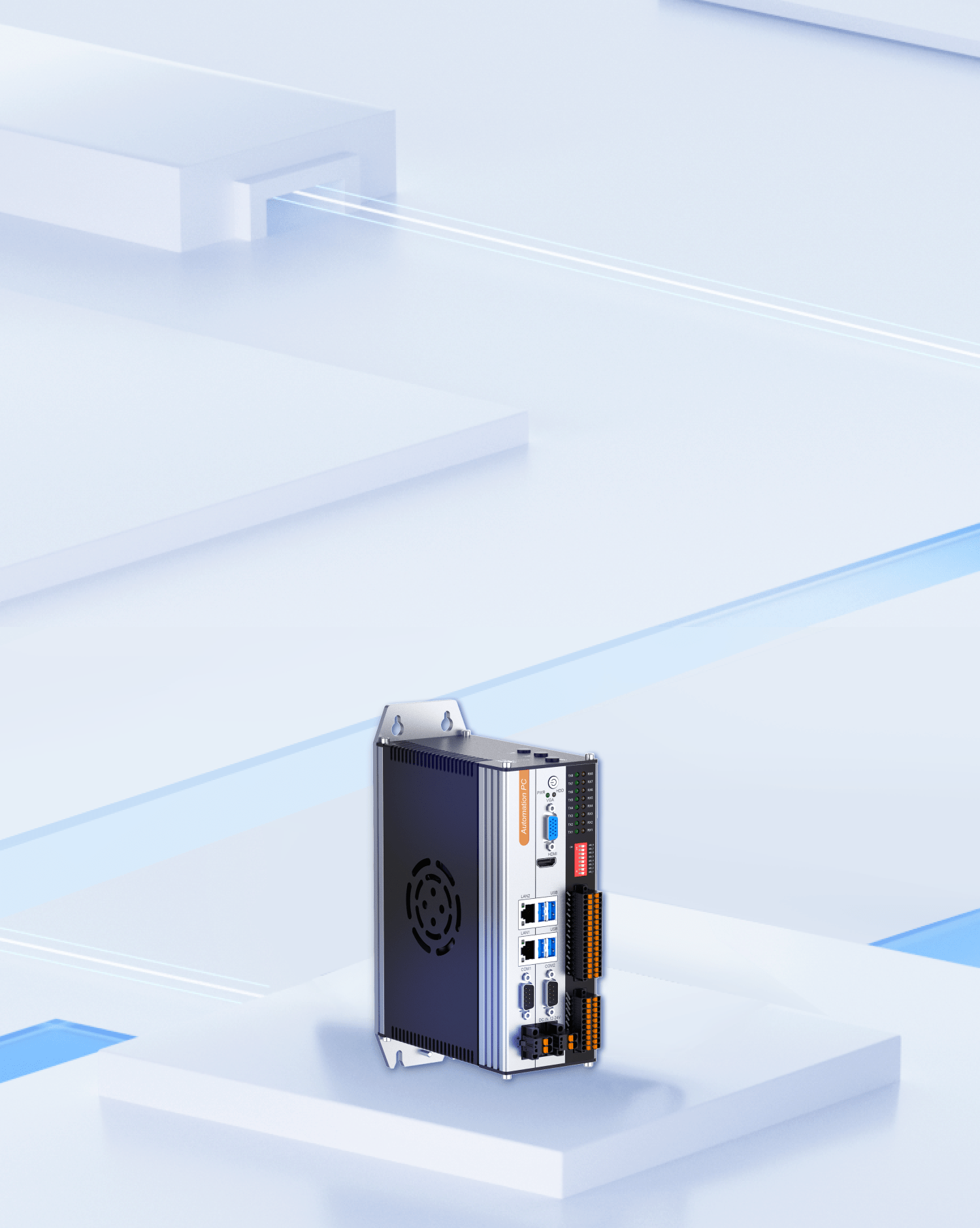

DCEMS-SCU-4
EMS features high-performance hardware, powerful software, flexible
architecture, and excellent performance, offering an efficient,
reliable, and cost-effective energy storage management solution. It
supports a wide range of applications, including industrial and
commercial energy storage, power stations, and distributed energy
management, helping users achieve energy transition and sustainable
development.
Product Highlights
High-performance hardware design
It adopts a high-performance Intel Core i5-10400 quad-core
processor, paired with 16GB of memory, easily handling complex
data processing and ensuring the efficient operation of the
system.
Rich communication interfaces
It provides 2 Ethernet ports and 10 serial ports (including 2
ports with RS232/RS485 multiplexing), supports 4G/5G, WiFi and
Bluetooth, and is adaptable to various devices and network
environments.
High-precision data acquisition
There are 8 isolated DI inputs and 4 normally open relay outputs.
The data acquisition cycle is as low as 500ms, ensuring real-time
performance and high precision.
Intelligent control and linkage strategies
It supports remote control and a variety of preset linkage
strategies, such as automatic shutdown in case of fire alarm, and
also allows users to customize complex control logic, improving
the intelligence and security of the system.
High reliability and stability
It supports a wide power supply input of DC 12-36V, operates in a
temperature range of -40℃ to 70℃, and a humidity range of 0% to
90% RH. It complies with multiple EMC standards and adapts to
harsh environments.
Convenient system management and maintenance
It supports Web interface management, remote upgrade, data
download and analysis. The operation is simple, reducing
maintenance costs and improving user experience.

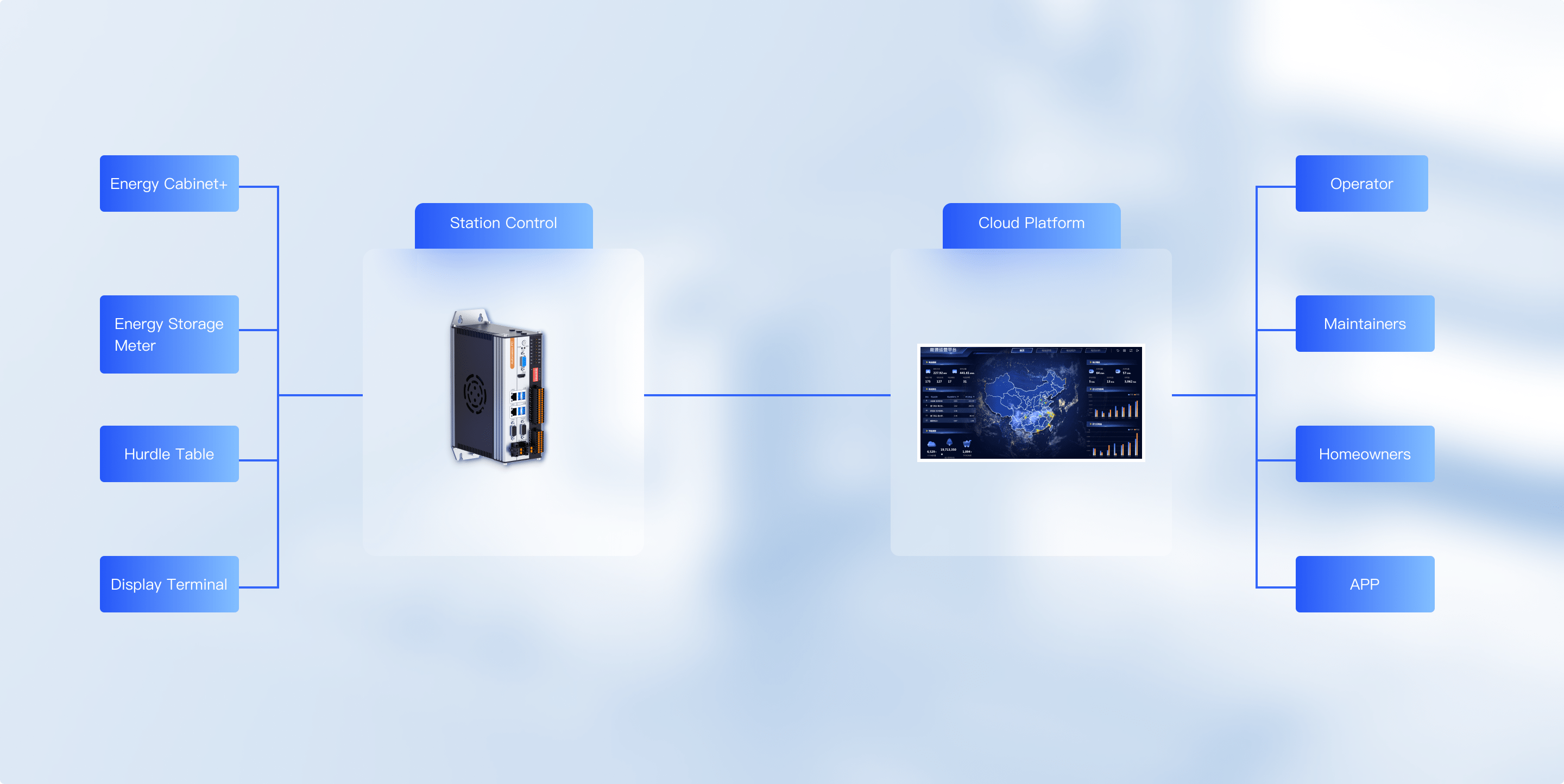

Product architecture
Product Functions
Data acquisition function
It supports the acquisition of power, voltage, current, SOC and
other data of devices such as PCS and BMS. The minimum acquisition
cycle is 500ms, ensuring real-time monitoring.
Equipment control function
It can remotely control devices such as PCS and BMS, execute
charging and discharging instructions, and supports manual and
automatic control modes, improving the flexibility of operation.
Communication function
It is equipped with 2 Ethernet ports, 10 serial ports and 3 CAN
buses, supports 4G/5G, WiFi and Bluetooth, and is adaptable to
various network environments.
Safety protection function
It supports over-current, over-voltage and reverse connection
protection, has fire protection linkage strategies, and ensures
the safety of equipment and personnel.
Intelligent strategy function
It supports strategies such as peak shaving and valley filling,
demand control, etc. It dynamically adjusts charging and
discharging according to SOC and power characteristics to optimize
system benefits.
System management function
It supports Web interface management, can be remotely upgraded and
configured with device parameters, simplifies the operation and
maintenance process, and improves user experience.
Technical parameters
Interface and wireless parameters
Ethernet ports
2 Gigabit Ethernet ports
Serial ports
2 RS232/RS485 ports and 8 RS485 ports
Digital Input (DI)
8 isolated Digital Inputs
Digital Output (DO)
4 normally open relay outputs
HDMI port
1 standard HDMI port
USB ports
4 USB3.0 ports
4G wireless (optional)
1 port
WiFi wireless (optional)
1 port
Hardware parameters
Central Processing Unit (CPU)
Intel Core i5-10400
Memory
16G (8MWh)
Solid State Drive (SSD)
512GB (8MWh)
Dimensions (D*W*H)
(L) 200mm * (W) 154.5mm * (H) 74.6mm
Installation method
Wall-mounted installation or DIN-Rail installation
Electrical and environmental parameters
Operating voltage
DC 12-24V ±10%, with over-current, over-voltage and reverse
connection protection
No-load power consumption
Maximum 120W
Temperature
Operating: -20 ~ +60℃, Storage: -40℃ ~ 80℃
Humidity
5-95% (non-condensing)
