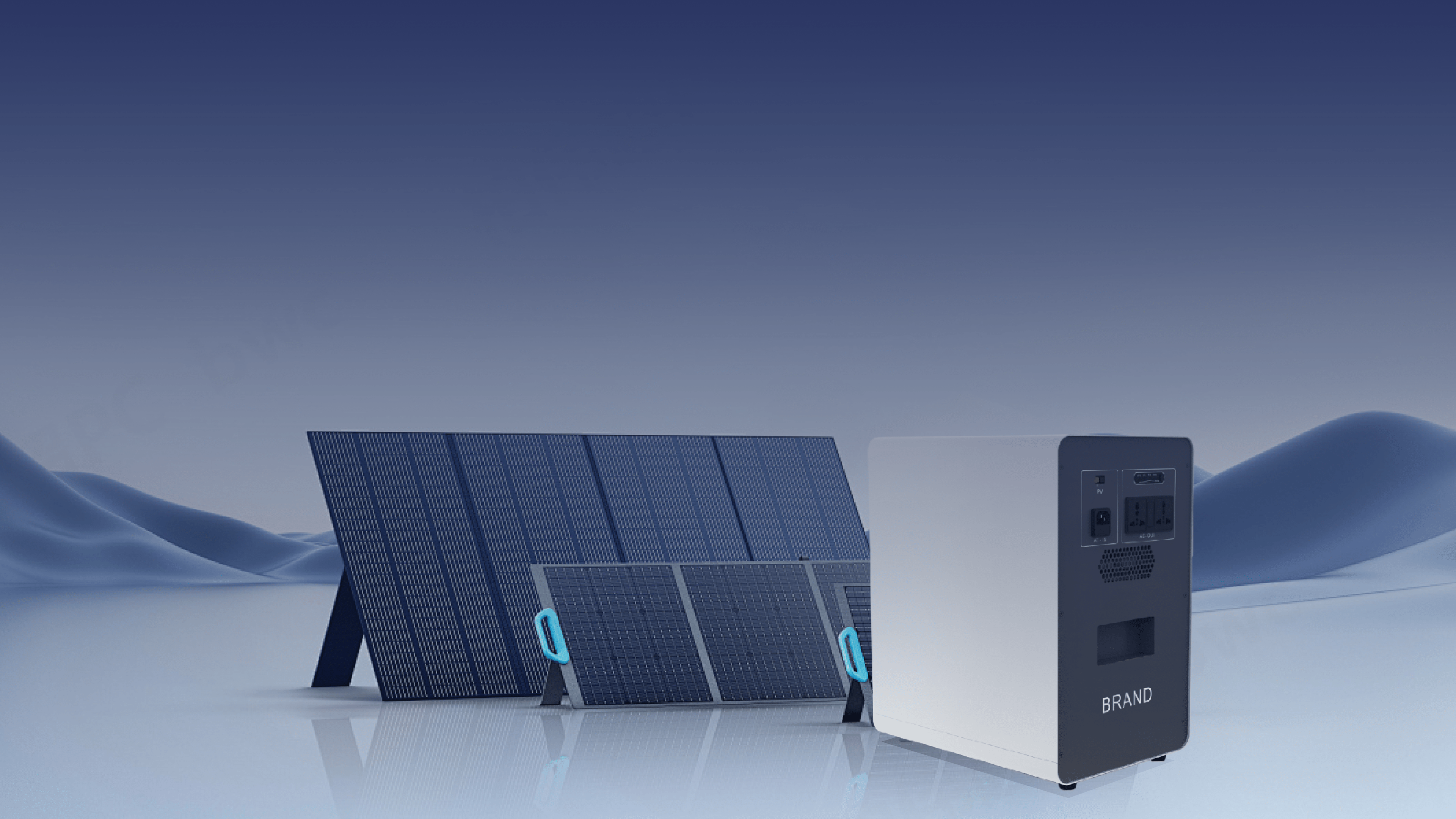

Portable Power Station
D0315 – 3.58 kWh / 1.5 kW
Portable energy storage power stations are lightweight and
multifunctional mobile power sources, widely used in outdoor
activities, emergency preparedness, medical rescue, outdoor work,
vehicle emergency start-up, live broadcasting and photography and
other fields. They have a variety of charging interfaces and
environmental protection and energy-saving features, and can provide
stable power support for various types of equipment.
Rich Usage Scenarios
Product Features
All-in-one design, integrating energy storage, inverter, management
and control system;
Supporting PV charging, which can meet the demand for zero-carbon
green power supply for self-generation and self-use in households;
Super cost-effective design;
Easy to install, no additional wiring required.
Technical Parameters
Battery
Battery cell
LiFePO4
Capacity
3584Wh (3.2V*280Ah*4)
AC output
Rated output power
1500VA
Waveform
Pure sine wave
Frequency
50/60Hz
Overload capacity
5min@102%-120% load; 30s@120%-150% load
Peak efficiency
>90.5%@12VDC
AC input
Rated input voltage
230Vac
AC Max input current
10A (RMS)
PV input
Max pv input power
1000W
Max pv input current
14A
MPPT voltage range
20VDC-100VDC
Pv Open-circuit voltage
125V
Others
Charge temperature
0 – 45℃
Discharge temperature
-20 – 50℃
Working humidity
MAX 90%RH
Battery cycle life
>10000 times (70% Capacity retention rate)
N.W.
≈ 30kg
Dimension L*W*H
355*255*425mm
IP protection
IP21
